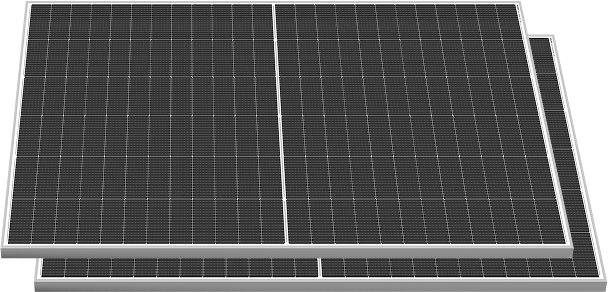

Bi-Facial Module with Dual Glass
Bi-Facial Module with Dual Glass
What makes our Solar PV Modules stand out
For reduced light-induced degradation (LID/LeTID)
To boost power output and lower the levelized cost of energy (LCOE).
Enhanced light absorption and efficient current extraction
Certified to withstand: 5400 Pa front & 2400 Pa rear max static test load
Minimizes the occurrence of Potential Induced Degradation (PID)
Enhanced module conversion efficiency of upto 22.84%
For Linear Performance
on Product Workmanship
*AAA denotes Module Wattage
| Nominal Maximum Power (Pmax) | 590 | 585 | 580 | 575 | 570 |
| Optimum Operating Voltage (Vmp) | 45.21 | 45.15 | 45.06 | 44.97 | 44.89 |
| Optimum Operating Current (Imp) | 13.07 | 12.97 | 12.88 | 12.80 | 12.71 |
| Open Circuit Voltage (Voc) | 53.83 | 53.72 | 53.61 | 53.50 | 53.39 |
| Short Circuit Current (Isc) | 13.73 | 13.64 | 13.55 | 13.46 | 13.38 |
| Module Efficiency (%) | 22.84 | 22.65 | 22.45 | 22.26 | 22.07 |
STC: Irradiance 1000W/m², Cell Temperature 25°C, AM = 1.5
| Nominal Maximum Power (Pmax) | 443 | 439 | 435 | 431 | 427 |
| Optimum Operating Voltage (Vmp) | 42.46 | 42.45 | 42.45 | 42.44 | 42.43 |
| Optimum Operating Current (Imp) | 10.49 | 10.40 | 10.29 | 10.20 | 10.12 |
| Open Circuit Voltage (Voc) | 49.52 | 49.50 | 49.50 | 49.47 | 49.47 |
| Short Circuit Current (Isc) | 11.11 | 11.00 | 10.91 | 10.81 | 10.73 |
NOMT: Irradiance 800W/m², Ambient Temperature 20°C, AM = 1.5 Wind Speed 1m/s
| Nominal Maximum Power (Pmax) | 620 | 614 | 609 | 604 | 599 |
| Short Circuit Current (Isc) | 14.47 | 14.32 | 14.22 | 14.09 | 13.99 |
| Nominal Maximum Power (Pmax) | 649 | 644 | 638 | 633 | 627 |
| Short Circuit Current (Isc) | 15.16 | 15.03 | 14.89 | 14.76 | 14.65 |
| Nominal Maximum Power (Pmax) | 679 | 673 | 667 | 661 | 656 |
| Short Circuit Current (Isc) | 15.85 | 15.71 | 15.57 | 15.43 | 15.32 |
| Nominal Maximum Power (Pmax) | 708 | 702 | 696 | 690 | 684 |
| Short Circuit Current (Isc) | 16.54 | 16.39 | 16.25 | 16.10 | 15.98 |
** Additional power gain from the rear side, relative to the front side’s power at STC, is influenced by the mounting structure (such as height and tilt angle) and the ground’s reflectivity. Bi-Faciality Factor: 70 ± 5%.
| Cell Type | M10 Half-Cut N-type TOPCon Bifacial Solar Cells |
| No. of cells | 144 (72×2) |
| Dimensions | 2278 × 1134 × 35 mm |
| Weight | 32.0 kg |
| Front Cover | 2 mm Low Iron Tempered AR coated Glass |
| Back Cover | 2 mm Low Iron Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | 30A Split Junction Box – IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Connector Type | MC4 Compatible |
| Output Cables | 4.0 mm² (+): 300 mm , (-): 300 mm or Customized Length |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse Rating | 30 A / 35 A |
| Current α (Isc) | 0.0265 %/°C |
| Voltage β (Voc) | -0.2261 %/°C |
| Power γ (Pmax) | -0.29 %/°C |
| 20 FT | 40 FT | |
| No. of Modules per Pallet | 31 Nos | 31 Nos |
| No. of Pallets per Container | 10 Pallets | 20 Pallates |
| No. of Modules per Container | 310 Nos | 620 Nos |
